Compared with traditional mechanically adjustable instant gas water heaters, this series of Flue Type Constant Temp. Gas Water Heater solves the problems of not being able to set the temperature, large fluctuations in hot water temperature, high start-up water pressure and the need to replace the batteries.
This electronic control method allows the user to set the water temperature by just pressing a button, and the unit will quickly adjust to the set temperature and maintain stability. It can work normally under the condition of low water pressure 0.01MPa. The touchscreen temperature display makes the gas water heater look sleek and stylish.
Model Number: ES Series
Advantages:
Constant temperature
Flue type, diameter: 110-130mm, easy upgraded
Low water pressure start-up: 0.01MPa
Electricity-powered
Touch screen display
Features:
Hot water output range: 10-18Lts/min(Δt = 25K)
Heat load: 20-36Kw
Gas type: natural gas and liquefied gas
Model |
Rated Heat Input (kW) |
Hot Water Supply (Δt = 25K) |
Product Size (mm) |
Packing Dimension (mm) |
Flue Diameter (mm) |
G.W/N.W (kgs) |
Q'20'/40'HQ |
10ES001 |
20 |
10L |
610*350*188 |
710*410*245 |
110 |
10.5/8.5 |
420/1000 |
12ES001 |
24 |
12L |
610*350*188 |
710*410*245 |
110 |
10.8/8.8 |
420/1000 |
14ES001 |
28 |
14L |
650*400*188 |
745*455*250 |
130 |
12.3/10.3 |
350/810 |
16ES001 |
32 |
16L |
700*440*200 |
800*495*260 |
130 |
14.7/12.7 |
280/650 |
18ES001 |
36 |
18L |
700*440*200 |
800*495*260 |
130 |
15/13 |
280/650 |
Zhongshan Gastek Home Appliance Company Limited é um líder profissional Controle eletrônico Temperatura constante 10L 12L Tipo de combustão montado na parede sem tanque instantâneo GLP Aquecedor de água a gás de água quente natural para fabricantes de chuveiros com alta qualidade e preço razoável. Bem-vindo a entrar em contato conosco.
As the professional manufacturers, Zhongshan Gastek Home Appliance Company Limited would like to provide Best Quality Cheap Price OEM Wholesale Hot Selling 6L 10L 12L 16L 18L 20L Tankless Instantaneous LPG Gas Geyser for you. And we will offer you the best after-sale service and timely delivery.

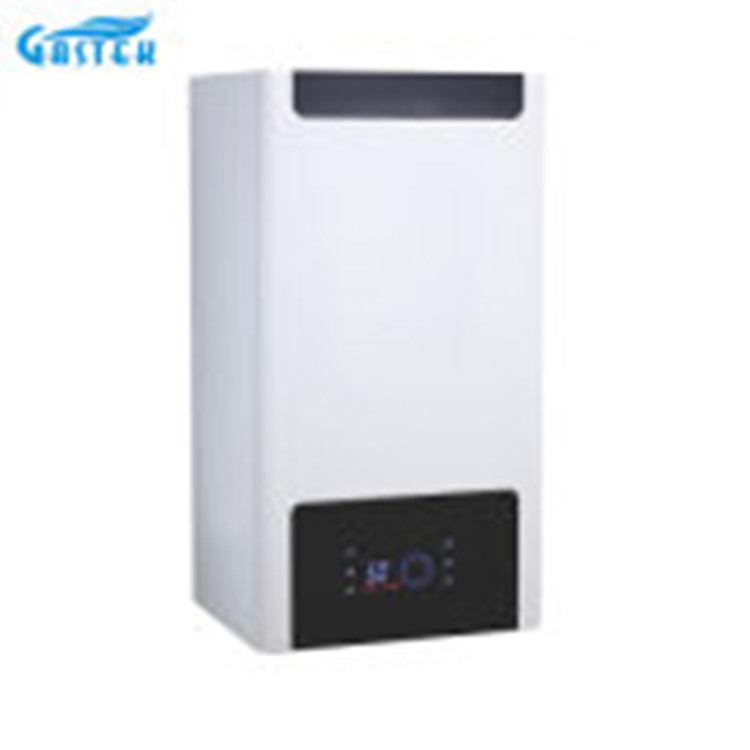

O gás e o ar são totalmente misturados antes da combustão, de modo que o coeficiente de excesso de ar esteja entre 1,1-1,3. As caldeiras podem entrar em combustão total com baixo teor de oxigênio. Além disso, ao utilizar a tecnologia de combustão catalisada, é eficiente evitar muitas emissões como CO e NOx. O conteúdo de CO nos gases de exaustão é inferior a 60 ppm e o NOx é inferior a 40 ppm. A emissão de Co é muito menor, apenas 1/10 do padrão nacional. E a emissão de NOx atinge o nível 5 da norma europeia que é inferior a 50 ppm. Caldeira combinada de gás de condensação pré-misturada montada na parede

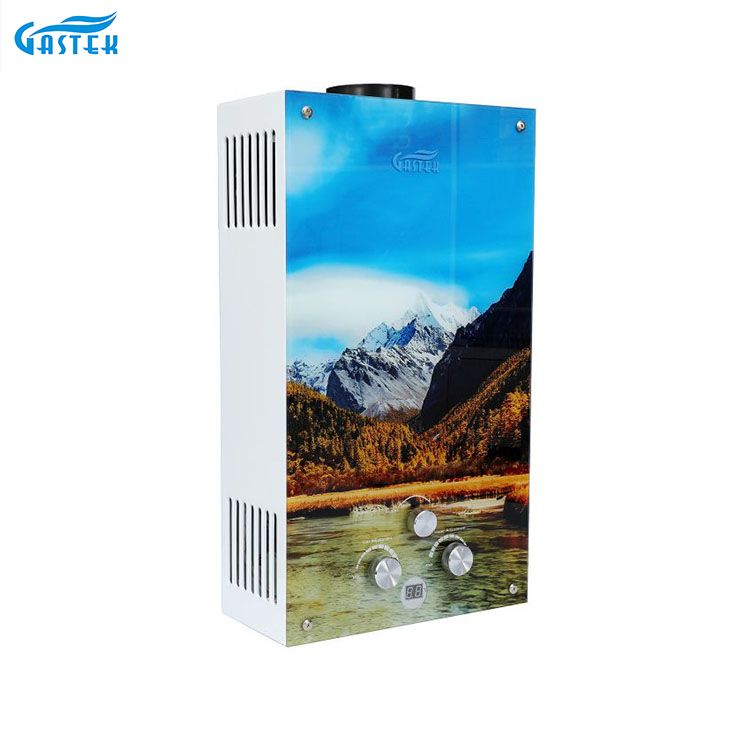

Este típico aquecedor de água a gás com painel de vidro de 12L do tipo chaminé pode fornecer água quente instantânea, infinita e sob demanda. É montado na parede, tem tamanho compacto e é fácil de instalar em áreas abertas. Proteção contra chama, proteção contra falha de ignição, proteção anticongelante, proteção contra superaquecimento, etc. podem garantir a segurança da família. Aquecedor de água a gás sem tanque tipo painel de vidro Gayser a gás por atacado para cozinha
You are welcomed to come to our factory to buy the latest selling, low price, and high-quality Chinese Supplier Home Appliance 6L 10L 12L Flue Type Wall Mounted Customized Glass Panel Hot Selling Tankless Instant Gas Water Heater for Bath, Zhongshan Gastek Home Appliance Company Limited looks forward to cooperating with you.
Zhongshan Gastek Home Appliance Company Limited is a professional leader China Home Appliance Customized Glass Panel Natural Gas Water Heater in Bathroom manufacturers with high quality and reasonable price. Welcome to contact us.
